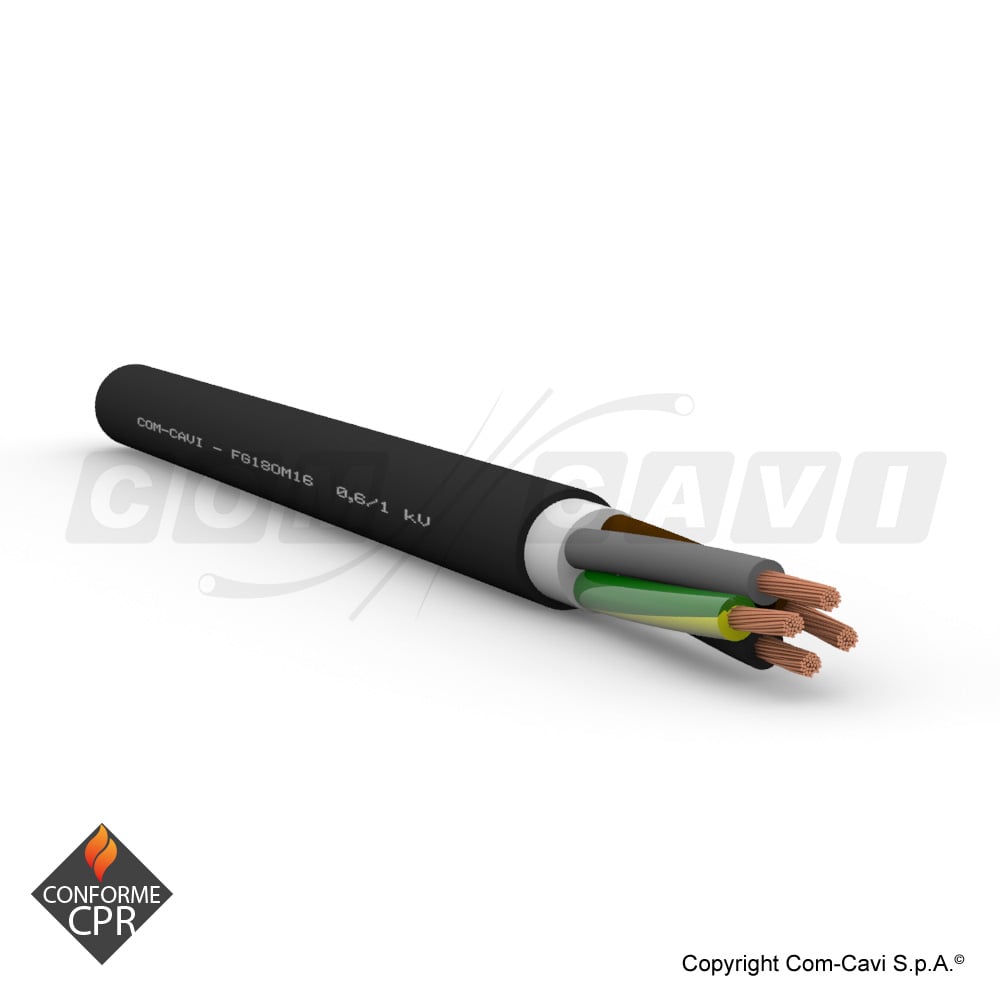

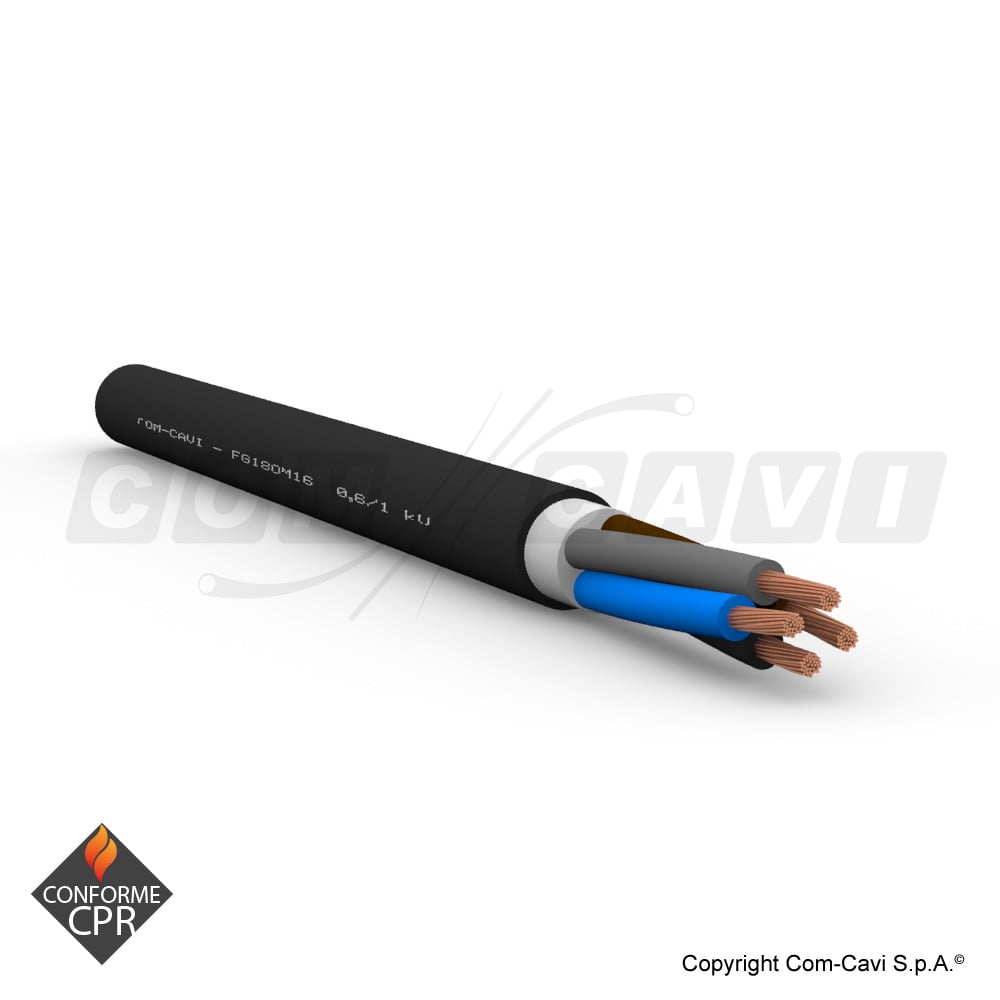

Cavo CPR FG18OM16 0,6/1 kV – 4×2,5

Availability:

Disponibile
Aggiungi alla lista dei desideri
Confronta

Articolo venduto al metro in multipli di 10.
Se la quantità ordinata non fosse disponibile in un unico “taglio”, un nostro commerciale ti contatterà per offrirti le metrature disponibili, prima della spedizione e di qualsiasi addebito.

Questo prodotto non beneficia del diritto di recesso, in quanto soggetto a lavorazione di taglio.

Cavo FG18OM16 4×2,5

Cavo bassa tensione in rame per Energia, Segnalamento e Comando.
Buona resistenza agli oli e ai grassi industriali. Adatto alle basse temperature.
Installazione consentita in ambienti interni o esterni anche bagnati.
Adatti per posa fissa, in aria libera, in tubo o canaletta, su murature o strutture metalliche.

Cavo conforme alla normativa CPR

Caratteristiche:

  • Non propagazione della fiamma;
  • Non propagazione dell’incendio;
  • Zero emissione di Alogeni;
  • Bassissima emissione fumi, gas tossici e corrosivi;
  • Buona resistenza agli oli e ai grassi industriali;
  • Buon comportamento alle basse temperature.

Visualizza le specifiche tecniche e normative

Specifiche tecniche



Il prodotto non è attualmente in magazzino e non è disponibile.

Confronta

Cavo CPR FG18OM16 0,6/1 kV – 4×2,5
Classe: B2ca- s1a, d1, a1

– Ø indicativo conduttore = 2,0 mm
– Spessore medio isolante= 1,0 mm
– Spessore medio guaina= 1,8 mm
– Ø esterno massimo= 16,3 mm
– Peso indicativo cavo= 400 kg/km
– Resistenza elettrica max a 20° C= 7,98 Ω/km
– Portata di corrente a 30° (in aria)= 26,0 A — (in tubo)= 32,0 A
– Portata di corrente a 20° (interrato)= 29,0 – 30,0 A — (in tubo interrato)= 25,0 – 27,0 A
